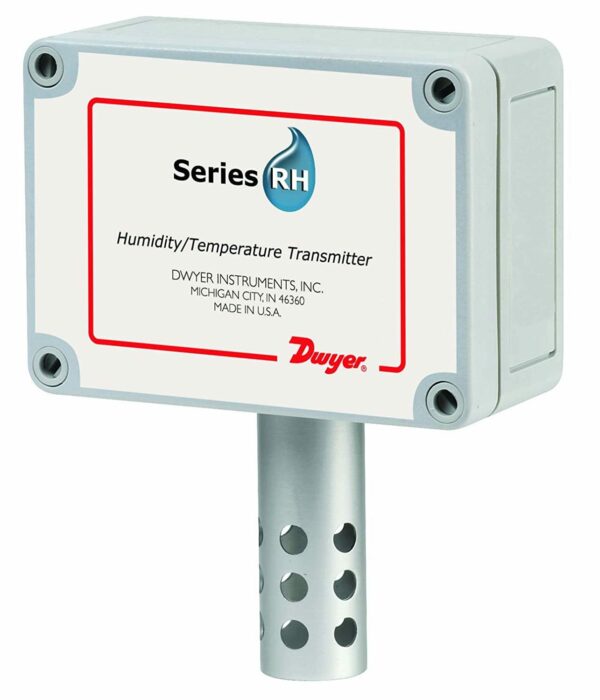

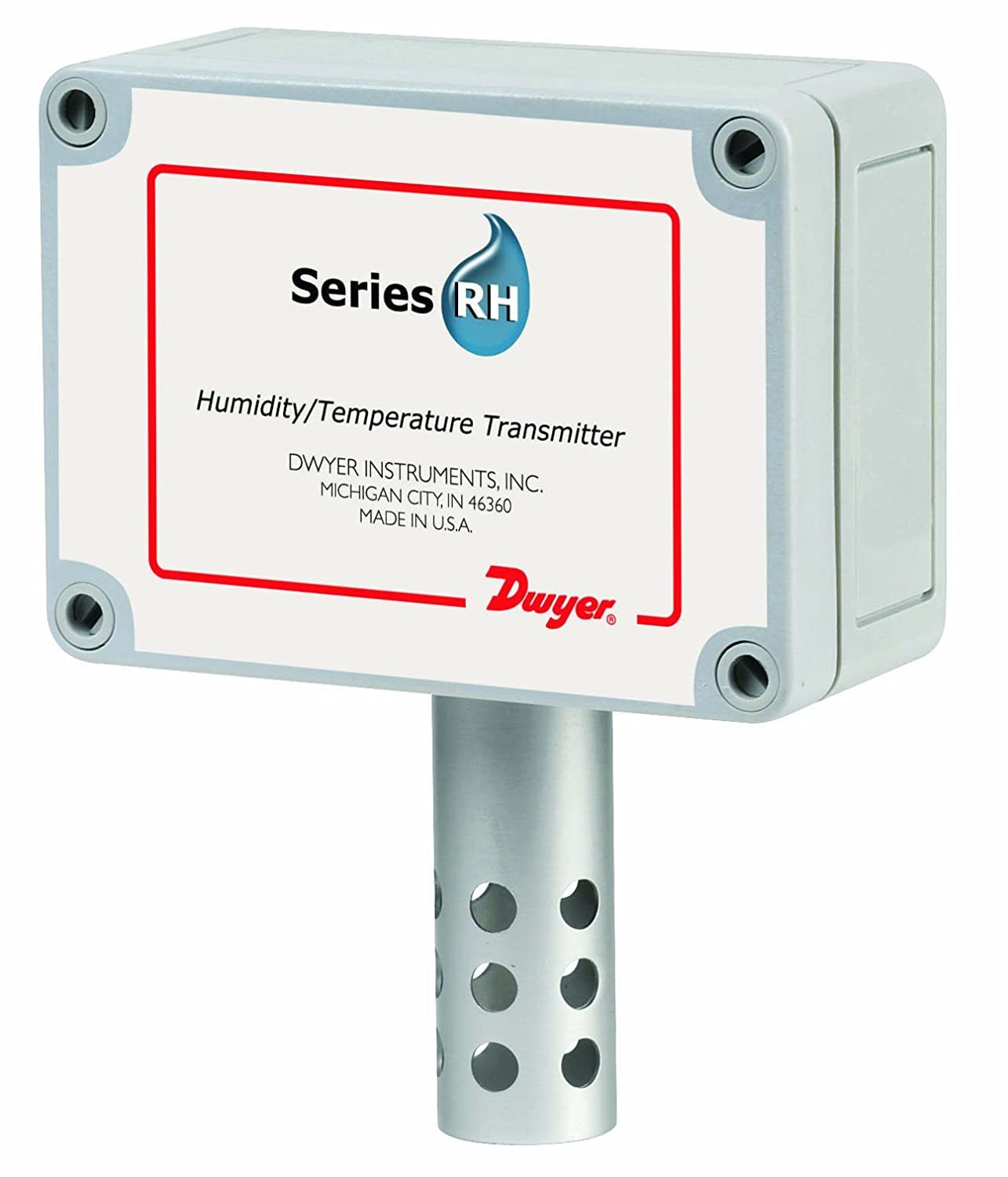

Humidity/Temperature Transmitters-Series RHP

Parameter

Temperature and Humidity

Features/Benefits

  • Reduced installation cost with combined humidity and temperature
  • Wide application environment from a large selection of temperature sensors and 2%, 3% and 5% accuracies
  • Reduced system operating costs with a radiation shield protecting the sensor from radiant heat

Special Features:

Passive Temperature Outputs, Sintered Filter Options

Applications

  • Air economizers
  • Outdoor temperature and relative humidity reference for building systems

Category:

Description

The Series RHP Humidity/Temperature Transmitters combine the voltage or current humidity transmitter output with a passive temperature thermistor or RTD output. The polymer capacitance humidity sensor reduces the long-term affect of condensation, fog, or high humidity. The humidity sensors are available with 2%, 3% or 5% accuracies. Duct-mounted transmitters are available with an optional two-line alpha numeric LCD display
