Dew Point and Moisture
Process Moisture Analyzers

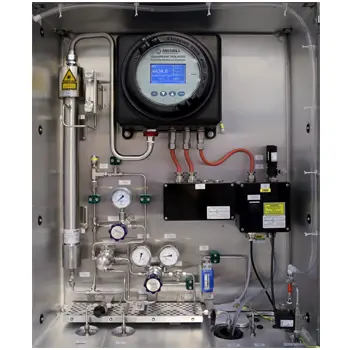

Moisture in Natural Gas Analyzer - Michell OptiPEAK TDL600
- D-MET system: Factory-ready for varying gas compositions. For example, after stream blending or injection of shale gas or biomethane to a network
- Operating range down to 1 ppmV
- Sour gas compatible

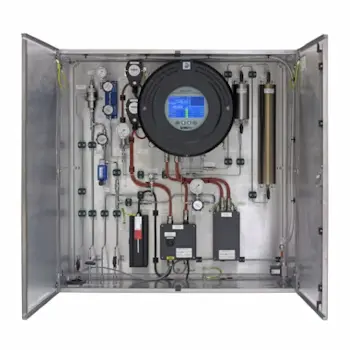

Process Moisture Analyzer - Michell QMA601
- Fast and reliable measurement from 0.1 to 2000ppmV
- Accuracy of ±0.1ppmV at <1ppmV and 10 % of reading from 1 to 2000ppmV
- Maintenance free for 3 years

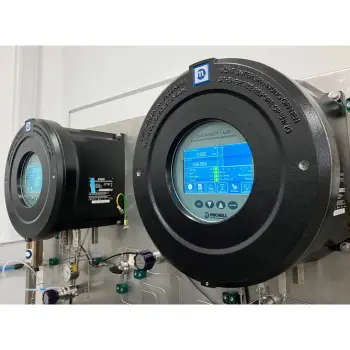

Low-Range Process Moisture Analyzer - Michell QMA601-LR
- Reliable low-range measurement from 0.02 to 100 ppmV
- Accuracy of ±0.03 ppmV or 10 % of reading
- Maintenance free for 3 years
Process Moisture Analyzer Michell QMA601 Moisture in CO2 Analyzer
- Reliable measurement from 1 to 1000 ppmV with trending to 2000 ppmV
- Accuracy of 1 ppmV from 1 to 10 ppmV or 10 % of reading
- Calibration traceable to national standards

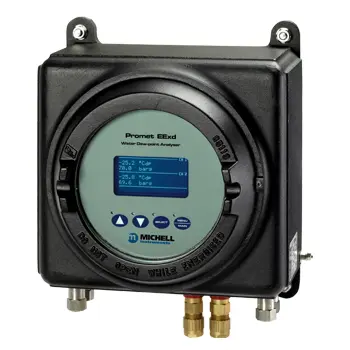

Process Moisture Analyzer - Michell Promet EExd
- EExd flameproof certified - IECEx, ATEX, UKCA, cQPSus and TR CU Ex
- Complete hazardous area installation
- Single- or dual-channel measurement

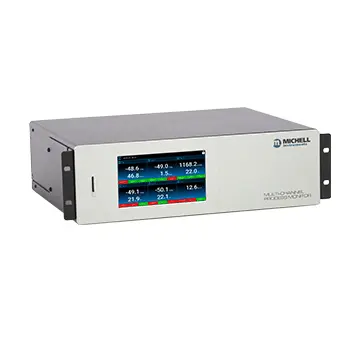

Process Moisture Analyzer Michell Multi-Channel Process Monitor
- 6-channel capable process monitor, utilizing a single 7” touchscreen HMI
- Up to 6 independent measurement channels with any combination of moisture in gas, moisture in liquids or oxygen
- 7” color touchscreen LCD, displaying moisture content/dew point or O2 and analysis pressure
Process Moisture Analyzer - Michell Promet I.S
- Simple, cost-efficient operation and low maintenance
- Immune to chemical attack from H2S, mercaptans and other sulphides
- Protected against glycol or other liquid contaminants

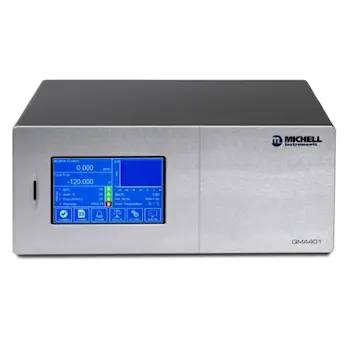

Self-Calibrating Trace Moisture Analyzer - Michell QMA401
- Precision measurement from 0.1 to 2000ppmV
- Fast response in both dry to wet and wet to dry transitions
- Simple, low cost, on-site maintenance with long service intervals
Transmitter for Moisture Analysis - Michell Easidew PRO I.S.
- Measurement range –110...+20 °Cdp
- ATEX, IECEx, UKCA, cQPSus, TR CU Ex certified
- Accuracy ±1 °Cdp
Explosion Proof Moisture Transmitter - Easidew PRO XP
- Measurement ranges -110 up to +20 °Cdp (-166 to 68 °Fdp)
- Global explosion / flameproof certification
- Accuracy ±1 °Cdp (±1.8 °Fdp)
Process Sampling System - Michell ES70
- Indoor panel or outdoor enclosure mounting options
- Process connection via 6mm or 1/4” tube fittings
- High quality components, stainless steel tubing and fittings

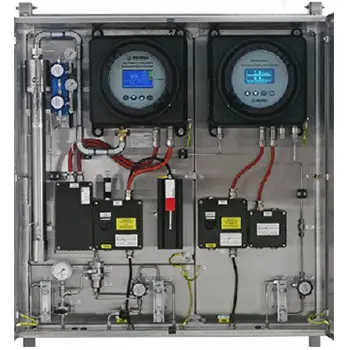

Michell Condumax II and OptiPEAK TDL600 Dew-Point Analyzer
- Measurement range: 1ppmV to 1000ppmV
- Measurement technology: Tuneable Diode Laser Spectroscopy
- Latest generation of TDLAS – moisture measurements are independent to changes in background gas composition
